MHA1050NSG150M-Molding Inductor-Transformer Manufacturer | Inductor Manufacturer

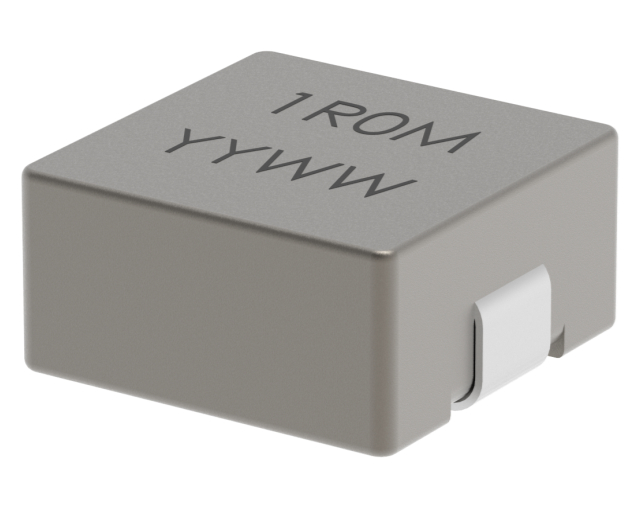

MHA1050NSG150M

Inquiry

Download

Specifications

Download

Specifications

Attribute	Explain
Series name	MHA1050NSG SERIES
Length(mm)	10.8±0.30
Width(mm)	10.0±0.30
Height(mm)	4.8±0.2
Iductace(μH))	15.0±20%
DCR Max(mΩ)	46
Isat(A)	8.5
Irms(A)	5.5

Download

MHA1050NSG150M.pdf
