At the heart of many modern power electronics systems lies a critical, yet often overlooked, component: the gate driver transformer. Its performance can be the difference between a robust system and a faltering one. Effective gate driver transformer design is not just about transferring a signal; it's about ensuring integrity, isolation, and resilience under demanding conditions. At Mentech, we focus on the engineering details that define high-quality magnetic components. Our approach to gate driver transformer design prioritizes core parameters that guarantee consistent operation in the most challenging applications, from automotive systems to industrial power supplies.

The Foundation of Effective Gate Driver Transformer Design

What separates a standard transformer from one engineered specifically for gate driving? The core function is to provide isolation and deliver a clean, controlled pulse to switch power semiconductors on and off. A successful gate driver transformer design must manage several critical factors simultaneously. It must maintain signal fidelity by minimizing distortion, provide robust electrical isolation to protect control circuits, and handle the fast switching speeds common in modern IGBTs and MOSFETs. Every aspect, from the core material selection to the physical winding technique, is chosen to support these fundamental requirements, ensuring the transformer acts as a reliable link in the power chain.

Key Performance Parameters in Our Design Process

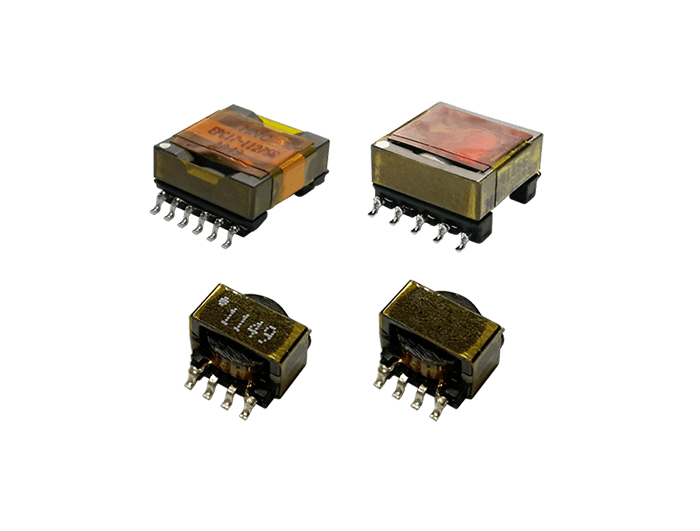

When we develop a gate driver transformer at Mentech, we target specific performance characteristics that directly impact system reliability. Our transformers are built to withstand insulation compressive strengths ranging from 1KV to 5KV, providing a vital safety margin for high-voltage applications. Furthermore, a core tenet of our gate driver transformer design is achieving low distributed capacitance. This characteristic is crucial because it minimizes coupling of high-frequency noise and reduces ringing, which helps to preserve signal integrity and improve the overall stability of the driving waveform.

Built for Demanding Operational Environments

A component can only be considered reliable if it performs consistently where it is installed. This is why environmental robustness is a non-negotiable part of our gate driver transformer design philosophy. Our components are engineered to operate within a wide temperature range, from -40°C to 155°C. This ensures dependable functionality whether in the demanding under-hood environment of an automotive system or in an industrial setting with significant thermal cycling. This inherent durability, combined with high reliability, translates to longer service life and reduced risk of failure for the end-product.

Gate Driver Transformer vs. General-Purpose Power Transformer

It is important to distinguish a gate driver transformer from a general-purpose power transformer, as they serve different roles.

A Gate Driver Transformer is specialized for signal-level applications. Its primary functions are isolation and pulse transmission. The design focuses on high isolation voltage, fast response time, and minimal waveform distortion. It is not typically used for transferring significant power.

A General-Purpose Power Transformer is designed for energy transfer. Its main goal is to efficiently step voltage up or down while handling substantial current levels, with a focus on minimizing power losses across the winding.

The choice hinges on the application's primary need: precise signal control and isolation for the gate driver, versus bulk energy conversion for the power transformer.

A well-executed gate driver transformer design is a cornerstone of efficient and safe power electronics. It requires a deep understanding of materials, electrical behavior, and real-world operating conditions. At Mentech, we combine years of expertise with advanced manufacturing capabilities to produce gate driver transformers that meet stringent requirements for isolation, signal integrity, and environmental endurance. We are dedicated to providing magnetic components that form the reliable backbone  of your advanced systems. For a partner who understands the critical nuances of gate driver transformer design, contact Mentech to discuss your specific needs.
